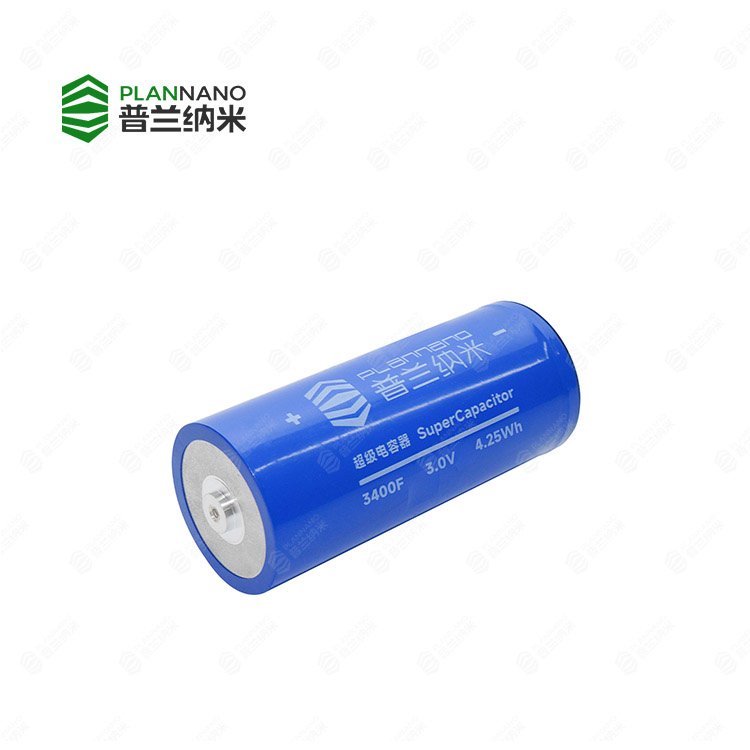

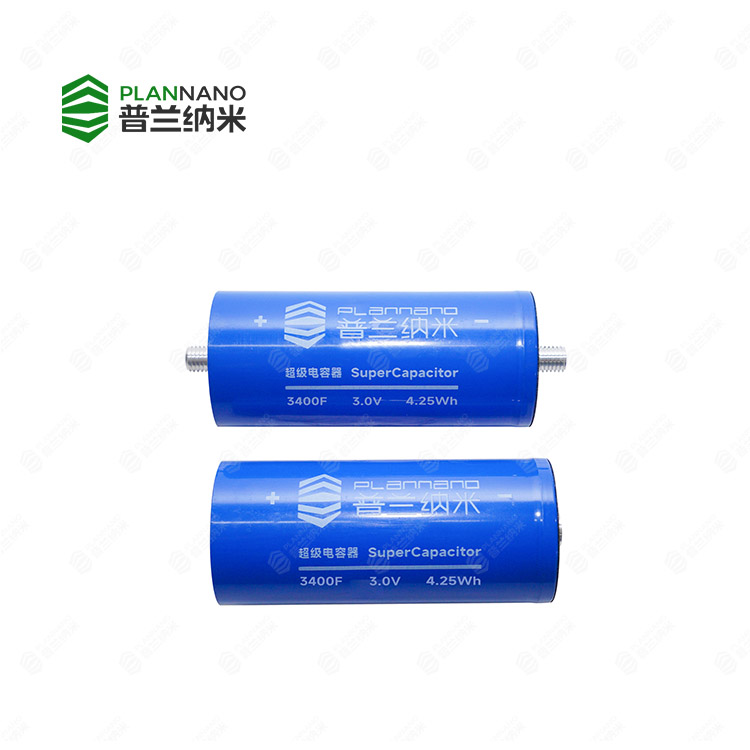

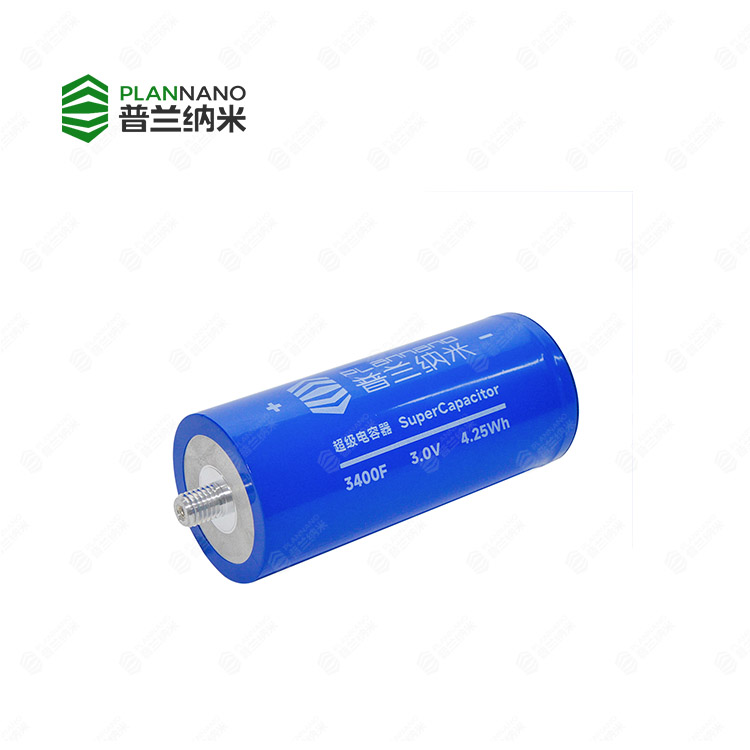

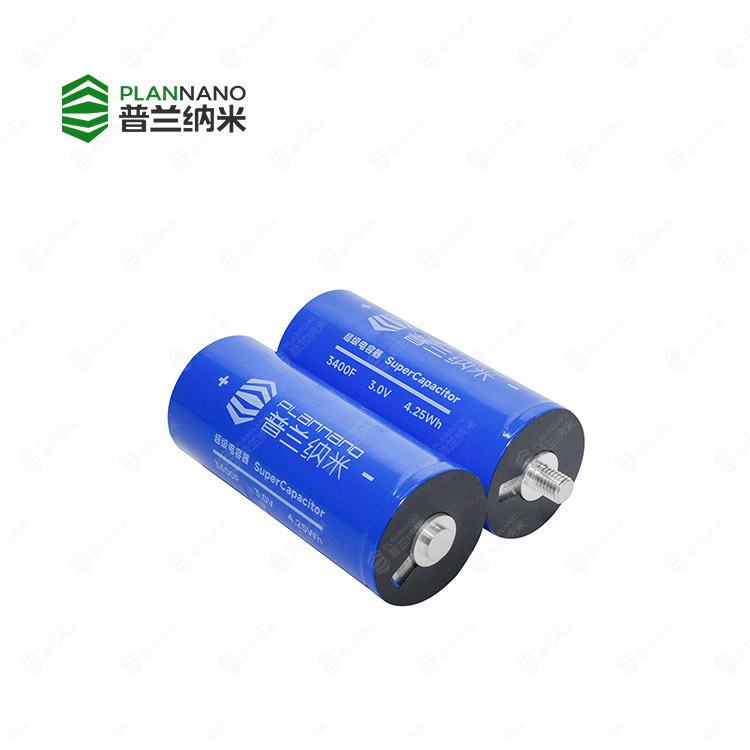

3.0V 3400F
3.0V 3400F
Product Advantages
 | Utilizing Self-produced dry electrode |  | Compared with traditional capacitors, the energy density exceeds 10% |
 | Under high temperature and high humidity conditions, the DC life is longer than 1500 hours |  | Long life, more than 1 million times |
 | Suitable for 3.0V and above high voltage capacitors |
Specifications
1. General Specifications
| Items | Characteristics |
| Rated Voltage UR | 3.0V |
| Surge Voltage | 3.15V |
| Self-discharge（Voltage after 72h） | ≥80%UR |
| Operating Temperature | -40℃ ~ +65℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Vibration | ISO 16750-3 (Table 14) |
| Shock | SAE J2464 |
| Safety | RoHS，REACH |

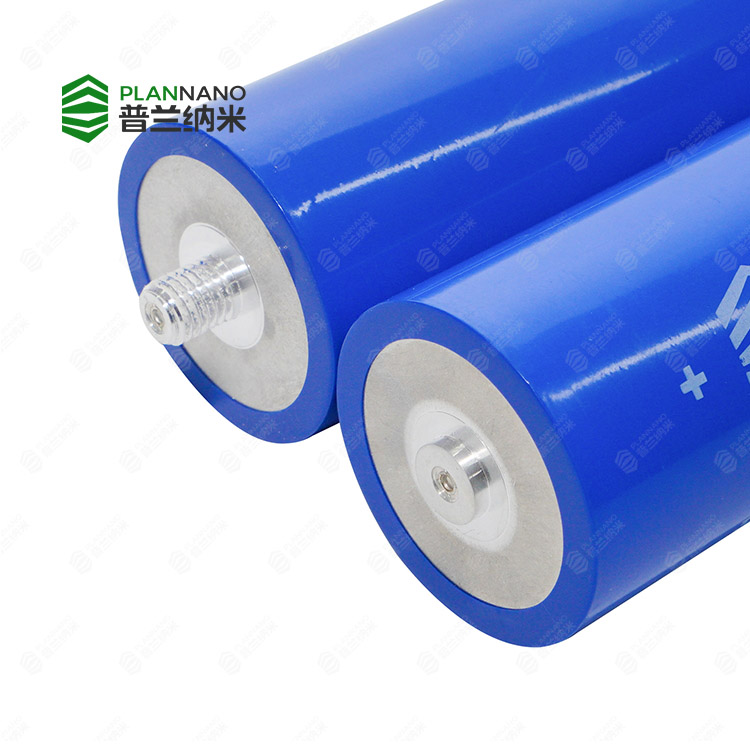

| Terminals | Weldable |
2. Life List
| Items | Characteristics | |
| 65℃ DC Life | Lifetime | 1000 hours |
Capacitance Change | 20% | |
ESR Change (increase from rated value) | 100% | |
| 25℃ DC Life | Lifetime | 10 years |
Capacitance Change | 20% | |
ESR Change (increase from rated value) | 100% | |
| 25℃ Cycle Life | Times | 500,000 cycles |
Capacitance Change | 20% | |
ESR Change (increase from rated value) | 100% | |
| Shelf Life | Stored at room temperature and self-discharging state | 4 years |
3. Detail Specifications
| Items | PLUC3400C3R00WLA | PLUC3400C3R00STA | |
| Rated Capacitance（F） | 3400 | 3400 | |
| Capacitance Tolerance | 0% ~+20% | 0% ~+20% | |
Max. Continuous Current （A）(ΔT = 15℃) | 145 | 145 | |
Max. Continuous Current （A）(ΔT = 40℃) | 238 | 238 | |
| ESR | AC(1kHZ)（mΩ）AC(1kHZ) | 0.15 | 0.15 |
| DC0.1s（mΩ）DC0.1s | 0.18 | 0.18 | |
| DC1s（mΩ）DC1s | 0.22 | 0.22 | |
| DC5s（mΩ）DC5s | 0.24 | 0.24 | |
| Leakage Current@25 ℃（mA） | 12 | 12 | |
| Peak Current（1s）Imax（A） | 2917 | 2917 | |
| Energy Storage Emax（Wh） | 4.25 | 4.25 | |
| Energy Density Ed（Wh/kg） | 8.2 | 8.2 | |
| Usable Specific Power Pd（kW/kg） | 9.44 | 9.44 | |
| Impedance Match Specific Power Pmax（kW/kg） | 24.04 | 24.04 | |
| Thermal Resistance RTh（℃/W） | 3.2 | 3.2 | |
| Thermal Capacitance CTh（J/℃） | 600 | 600 | |
| Weight M（g） | 520 | 520 | |
| Size（D*H）（mm） | 60.8*144.9 | 60.8*166.9 | |
* All products can be customized according to clients’needs.
